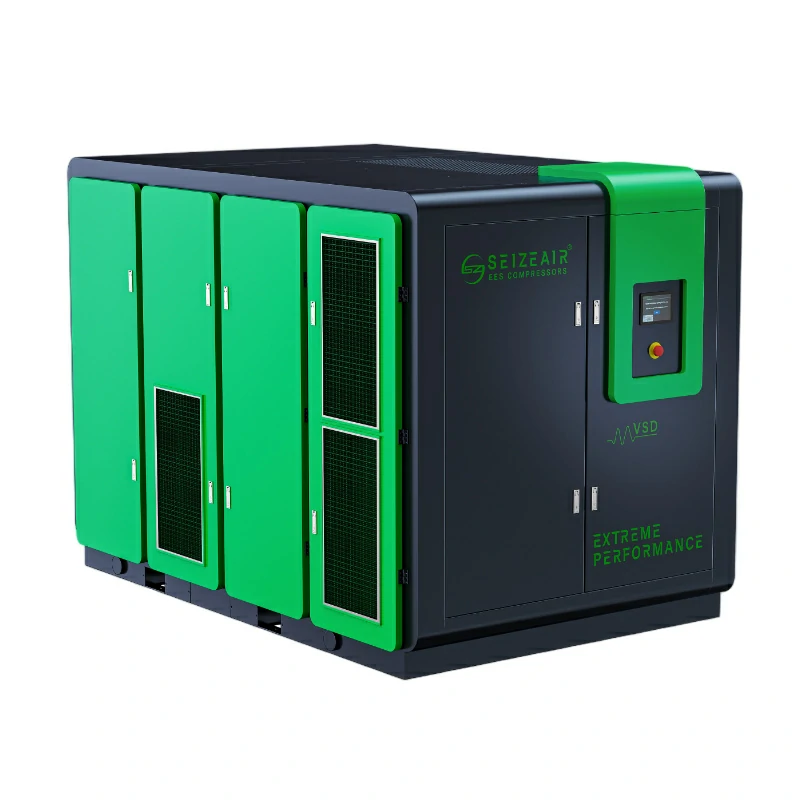

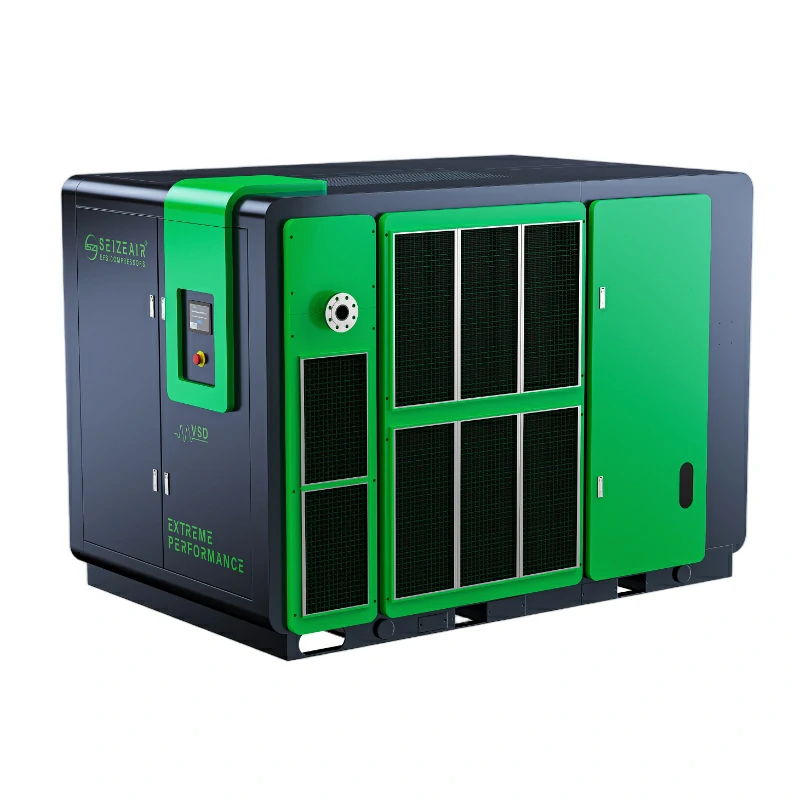

Permanent magnet variable frequency two stage energy saving air compressor
IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD,two stage compressor
|
Power | 15-450kW |
|
Air outflow | 2-101.3m³/min |
|
Max pressure | 4.5-12.5bar |
Core Components+
System Advantages
IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD,two stage compressor

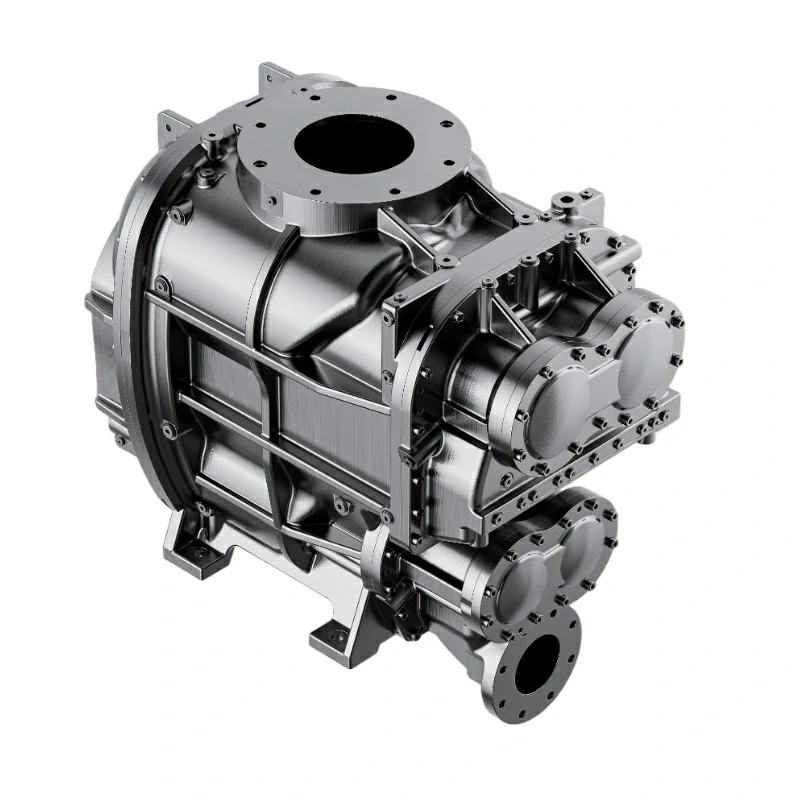

- High-Efficiency Low-Speed Two Stage Screw Airend
Isothermal Compression Principle，higher volumetric efficiency，Low Compression Ration - Permanent Magnet Premium Efficiency Motor
IE4-class PM motor delivers 98% efficiency with 5% energy saving over standard VFD motors - Wide Speed Range with Precise Control
Broad adjustable speed range (25%–100%) with ±0.5% pressure precision for stable operation - Dual Inverter Technology
Intelligent dual-frequency drive maintains constant temperature (±1°C) and pressure (±0.1bar) output - Customized Main Filter With Air Loss Control
Lower Pressure loss, High Efficiency, longer lifespan - Premium SKF Brand Bearing System
Provides 50,000+ hours service life with <0.01mm vibration tolerance - Oversized Cooling System
✓ 30% larger radiator with anti-corrosion nano-coating (salt spray test >1000h)
✓ Quick-release dustproof mesh
✓ 15% better heat dissipation than industry average - Advanced Oil-Gas Separation
✓ Customized design folding type oil separator
✓ ≤3ppm oil content in output air
✓ Longer lifespan (up to 8000 hours)
Product Parameter
SZ-20TPM~SZ-60TPM
| New Model | Maximum working pressure |
Capacity(FAD) | Motor power | Outlet pipe dia. |
Dimensions(mm) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | psig | m³min | cfm | kw | hp | inch | L | w | H | kg | |
| SZ-20TPM | 4.5 | 65 | 1.0~3.9 | 35.3~137.7 | 15 | 20 | G11/2 | 1550 | 980 | 1300 | 1000 |
| 5.5 | 80 | 0.9~3.5 | 31.8~123.6 | ||||||||
| 6.5 | 94 | 0.8~3.2 | 28.2~113.0 | ||||||||
| 7.5 | 109 | 0.7~3.0 | 24.7~105.9 | ||||||||
| 8.5 | 123 | 0.7~2.9 | 24.7~102.4 | ||||||||
| 10.5 | 152 | 0.6~2.4 | 21.2~84.7 | ||||||||
| 12.5 | 181 | 0.5~2.0 | 17.7~70.6 | ||||||||
| SZ-25TPM | 4.5 | 65 | 1.2~4.8 | 42.4~169.4 | 18.5 | 25 | G11/2 | 1550 | 980 | 1300 | 1100 |
| 5.5 | 80 | 1.1~4.3 | 38.8~151.8 | ||||||||
| 6.5 | 94 | 1.0~4.0 | 35.3~141.2 | ||||||||
| 7.5 | 109 | 0.9~3.8 | 31.8~134.1 | ||||||||
| 8.5 | 123 | 0.8~3.4 | 28.2~120.0 | ||||||||
| 10.5 | 152 | 0.7~2.9 | 24.7~102.4 | ||||||||
| 12.5 | 181 | 0.7~2.7 | 24.7~95.3 | ||||||||
| SZ-30TPM | 4.5 | 65 | 1.6~6.4 | 56.5~225.9 | 22 | 30 | G2 | 1700 | 1130 | 1430 | 1300 |
| 5.5 | 80 | 1.5~6.1 | 53.0~215.3 | ||||||||
| 6.5 | 94 | 1.2~4.8 | 42.4~169.4 | G11/2 | 1550 | 980 | 1300 | 1100 | |||
| 7.5 | 109 | 1.1~4.5 | 38.8~158.9 | ||||||||
| 8.5 | 123 | 1.1~4.3 | 38.8~151.8 | ||||||||
| 10.5 | 152 | 0.8~3.4 | 28.2~120.0 | ||||||||
| 12.5 | 181 | 0.7~2.9 | 24.7~102.4 | ||||||||
| SZ-40TPM | 4.5 | 65 | 2.1~8.8 | 74.1~310.7 | 30 | 40 | G2 | 1700 | 1130 | 1430 | 1350 |
| 5.5 | 80 | 1.9~7.7 | 67.1~271.8 | ||||||||
| 6.5 | 94 | 1.8~7.0 | 63.5~247.1 | ||||||||
| 7.5 | 109 | 1.6~6.8 | 56.5~240.0 | ||||||||
| 8.5 | 123 | 1.5~6.2 | 53.0~218.9 | ||||||||
| 10.5 | 152 | 1.2~4.7 | 42.4~165.9 | G11/2 | 1550 | 980 | 1300 | 1150 | |||
| 12.5 | 181 | 1.1~4.3 | 38.8~151.8 | ||||||||
| SZ-50TPM | 4.5 | 65 | 2.6~10.3 | 91.8~363.6 | 37 | 50 | G2 | 1850 | 1180 | 1430 | 1650 |
| 5.5 | 80 | 2.4~9.5 | 84.7~335.4 | ||||||||
| 6.5 | 94 | 2.2~8.7 | 77.7~307.1 | 1700 | 1130 | 1430 | 1450 | ||||
| 7.5 | 109 | 1.9~7.5 | 67.1~264.8 | ||||||||
| 8.5 | 123 | 1.8~7.4 | 63.5~261.2 | ||||||||
| 10.5 | 152 | 1.5~6.0 | 53.0~211.8 | ||||||||
| 12.5 | 181 | 1.4~5.6 | 49.4~197.7 | ||||||||
| SZ-60TPM | 4.5 | 65 | 3.3~13.1 | 116.5~462.4 | 45 | 60 | G21/2 | 2250 | 1370 | 1700 | 2100 |
| 5.5 | 80 | 2.9~11.5 | 102.4~405.9 | ||||||||
| 6.5 | 94 | 2.4~10.5 | 84.7~370.6 | G2 | 1850 | 1180 | 1430 | 2000 | |||
| 7.5 | 109 | 2.3~10.0 | 81.2~353.0 | 1700 | 1130 | 1460 | 1700 | ||||
| 8.5 | 123 | 2.2~8.6 | 77.7~303.6 | ||||||||
| 10.5 | 152 | 1.9~7.5 | 67.1~264.8 | ||||||||
| 12.5 | 181 | 1.6~6.4 | 56.5~225.9 | ||||||||
SZ-75TPM~SZ-175TPM
| New Model | Maximum working pressure |
Capacity (FAD) | Motor power | Outlet pipe dia |
Dimensions(mm) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | psig | m³/min | cfm | kw | hp | inch | L | w | H | kg | |
| SZ-75TPM (W) |
4.5 | 65 | 3.9~15.5 | 137.7~547.2 | 55 | 75 | G21/2 | 2250 (2300) |
1370 (1500) |
1700 (1750) |
2200 (2200) |
| 5.5 | 80 | 3.4~14.5 | 120.0~511.9 | ||||||||
| 6.5 | 94 | 3.2~13.3 | 113.0~469.5 | ||||||||
| 7.5 | 109 | 3.0~13.1 | 105.9~462.4 | ||||||||
| 8.5 | 123 | 2.8~12.3 | 98.8~434.2 | ||||||||
| 10.5 | 152 | 2.3~10.1 | 81.2~356.5 81.2~317.7 |
G2 | 1850 (1800) |
1180 (1320) |
1430 (1370) |
2000 (2000) |
|||
| 12.5 | 181 | 2.3~9.0 | |||||||||
| SZ-100TPM (W) |
4.5 | 65 | 4.2~20.7 | 148.3~730.7 | 75 | 100 | DN65 | 2450 (2750) |
1670 (1780) |
1740 (1950) |
2600 (3000) |
| 5.5 | 80 | 4.8~19.0 | 169.4~670.7 | ||||||||
| 6.5 | 94 | 4.5~17.5 | 158.9~617.8 | DN65 | 2300 (2300) |
1670 (1500) |
1690 (1750) |
2400 (2400) |
|||
| 7.5 | 109 | 4.2~16.6 | 148.3~586.0 | ||||||||
| 8.5 | 123 | 3.8~15.6 | 134.1~550.7 | ||||||||
| 10.5 | 152 | 3.4~13.6 | 120.0~480.1 | G21/2 | 2250 (2300) |
1370 (1500) |
1700 (1750) |
2300 (2400) |
|||
| 12.5 | 181 | 2.9~11.5 | 102.4~406.0 | ||||||||
| SZ-120TPM (W) |
4.5 | 65 | 6.4~25.6 | 225.9~903.7 | 90 | 120 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4000 (4000) |
| 5.5 | 80 | 5.9~23.6 | 208.3~833.1 | DN80 | 2750 (2750) |
1780 (1780) |
1950 (1950) |
3300 (3700) |
|||
| 6.5 | 94 | 5.6~21.5 | 197.7~759.0 | ||||||||
| 7.5 | 109 | 5.3~20.8 | 187.1~734.2 | ||||||||
| 8.5 | 123 | 4.9~20.0 | 173.0~706.0 | ||||||||
| 10.5 | 152 | 4.1~16.3 | 144.7~575.4 | DN65 | 2300 (2300) |
1670 (1500) |
1690 (1750) |
2600 (3200) |
|||
| 12.5 | 181 | 3.9~15.3 | 137.7~540.1 | ||||||||
| SZ-150TPM (W) |
4.5 | 65 | 7.7~30.0 | 271.8~1059.0 | 110 | 150 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4100 (3800) |
| 5.5 | 80 | 7.2~28.2 | 254.2~995.5 | ||||||||
| 6.5 | 94 | 6.7~26.6 | 236.5~939.0 | ||||||||
| 7.5 | 109 | 6.1~24.5 | 215.3~864.9 | DN80 | 2750 (2750) |
1780 (1780) |
1950 (1950) |
3800 (3400) |
|||
| 8.5 | 123 | 5.8~23.5 | 204.7~829.6 | ||||||||
| 10.5 | 152 | 5.1~20.1 | 180.0~709.5 | ||||||||
| 12.5 | 181 | 4.4~17.3 | 155.3~610.7 | ||||||||
| SZ-160TPM (W) |
4.5 | 65 | 8.8~35.0 | 310.6~1235.5 | 120 | 160 | DN125 | 2930 (3250) |
1900 (1950) |
2060 (2150) |
4600 (4600) |
| 5.5 | 80 | 7.9~30.0 | 278.9~1059.0 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4200 (3900) |
|||
| 6.5 | 94 | 7.2~28.2 | 254.2~995.5 | ||||||||
| 7.5 | 109 | 6.5~26.0 | 229.5~917.8 | ||||||||
| 8.5 | 123 | 6.1~24.8 | 215.3~875.4 | ||||||||
| 10.5 | 152 | 5.6~22.9 | 197.7~808.4 | DN80 | 2750 (2750) |
1780 (1780) |
1950 (1950) |
4000 (3600) |
|||
| 12.5 | 181 | 4.7~19.2 | 165.9~677.8 | ||||||||
| SZ-175TPM (W) |
4.5 | 65 | 9.6~38.3 | 338.9~1352.0 | 132 | 175 | DN125 | 2930 (3250) |
1900 (1950) |
2060 (2150) |
4800 (4800) |
| 5.5 | 80 | 8.8~35.0 | 310.6~1235.5 | ||||||||
| 6.5 | 94 | 7.8~33.0 | 275.3~1164.9 | ||||||||
| 7.5 | 109 | 7.2~30.0 | 254.2~1059.0 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4300 (4000) |
|||
| 8.5 | 123 | 6.9~28.0 | 243.6~988.4 | ||||||||
| 10.5 | 152 | 6.1~24.1 | 215.3~850.7 | ||||||||
| 12.5 | 181 | 5.4~21.3 | 190.6~751.9 | ||||||||
SZ-200TPM~SZ-300TPM
| New Model | Maximum working pressure |
Capacity(FAD) | Motor power | Outlet pipe dia |
Dimensions(mm) | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | psig | m³min | cfm | kw | hp | inch | L | w | H | kg | ||
| SZ-200TPM (W) |
4.5 | 65 | 10.5~42.0 | 370.7~1482.6 | 150 | 200 | DN125 | 3250 (3250) |
1950 (1950) |
2150 (2150) |
5000 (5500) |
|
| 5.5 | 80 | 9.6~38.3 | 338.9~1352.0 | |||||||||
| 6.5 | 94 | 8.8~35.0 | 310.6~1235.5 | |||||||||
| 7.5 | 109 | 8.1~33.0 | 285.9~1164.9 | |||||||||
| 8.5 | 123 | 7.4~30.0 | 261.2~1059.0 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4100 (4300) |
||||
| 10.5 | 152 | 6.5~28.0 | 229.5~988.4 | |||||||||
| 12.5 | 181 | 6.1~24.3 | 215.3~857.8 | |||||||||
| SZ-215TPM (W) |
4.5 | 65 | 11.0~44.0 | 388.3~1553.2 | 160 | 215 | DN125 | 3250 (3250) |
1950 (1950) |
2150 (2150) |
5000 (5000) |
|
| 5.5 | 80 | 10.5~42.0 | 370.7~1482.6 | |||||||||
| 6.5 | 94 | 9.6~38.3 | 338.9~1352.0 | |||||||||
| 7.5 | 109 | 8.8~35.0 | 310.6~1235.5 | |||||||||
| 8.5 | 123 | 8.1~33.0 | 285.9~1164.9 | |||||||||
| 10.5 | 152 | 7.7~30.0 | 271.8~1059.0 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4500 (4100) |
||||
| 12.5 | 181 | 6.5~26.3 | 229.5~928.4 | |||||||||
| SZ-250TPM (W) |
4.5 | 65 | 12.7~50.0 | 448.3~1765.0 | 185 | 250 | DN125 | 3500 (3500) |
2250 (2100) |
2300 (2400) |
6200 (6400) |
|
| 5.5 | 80 | 11.5~46.0 | 406.0~1623.8 | 3250 (3250) |
1950 (1950) |
2150 (2150) |
5400 (6200) |
|||||
| 6.5 | 94 | 11.0~44.0 | 388.3~1553.2 | |||||||||
| 7.5 | 109 | 10.7~42.0 | 377.7~1482.6 | |||||||||
| 8.5 | 123 | 10.3~40.0 | 363.6~1412.0 | |||||||||
| 10.5 | 152 | 8.8~35.5 | 310.6~1253.2 | |||||||||
| 12.5 | 181 | 7.5~32.4 | 264.8~1143.7 | |||||||||
| SZ-270TPM (W) |
4.5 | 65 | 13.7~55.0 | 483.6~1941.5 | 200 | 270 | DN150 | 3800 (3800) |
2300 (2300) |
2400 (2400) |
7600 (7300) |
|
| 5.5 | 80 | 12.5~50.0 | 441.3~1765.0 | DN125 | 3500 (3500) |
2250 (2100) |
2300 (2400) |
6200 (6000) |
||||
| 6.5 | 94 | 11.5~46.0 | 406.0~1623.8 | |||||||||
| 7.5 | 109 | 11.0~44.0 | 388.3~1553.2 | |||||||||
| 8.5 | 123 | 10.5~42.0 | 370.7~1482.6 | |||||||||
| 10.5 | 152 | 9.7~38.6 | 342.4~1362.6 | |||||||||
| 12.5 | 181 | 8.2~33.0 | 289.5~1164.9 | |||||||||
| SZ-300TPM (W) |
4.5 | 65 | 15.3~61.0 | 540.1~2153.3 | 220 | 300 | DN150 | 3500 (3800) |
2100 (2300) |
2400 (2400) |
7800 (7500) |
|
| 5.5 | 80 | 13.7~55.0 | 483.6~1941.5 | |||||||||
| 6.5 | 94 | 12.7~51.0 | 448.3~1800.3 | |||||||||
| 7.5 | 109 | 12.4~49.6 | 437.7~1750.9 | DN125 | 3500 (3500) |
2250 (2100) |
2300 (2400) |
6400 (6200) |
||||
| 8.5 | 123 | 11.5~46.0 | 406.0~1623.8 | |||||||||
| 10.5 | 152 | 10.3~41.2 | 363.6~1454.4 | |||||||||
| 12.5 | 181 | 9.5~38.1 | 335.4~1344.9 | |||||||||
SZ-340TPM~SZ-500TPM
| New Model | Maximum working pressure |
Capacity(FAD) | Motor power | Outlet pipe dia |
Dimensions(mm) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | psig | m³min | cfm | kw | hp | inch | L | w | H | kg | |
| SZ-340TPM (W) |
4.5 | 65 | 16.3~65.0 | 575.4~2294.5 | 250 | 340 | DN150 | 3800 (3800) |
2300 (2300) |
2400 (2400) |
8000 (7300) |
| 5.5 | 80 | 15.3~61.0 | 540.1~2153.3 | ||||||||
| 6.5 | 94 | 15.0~60.0 | 529.5~2118.0 | ||||||||
| 7.5 | 109 | 13.8~55.3 | 487.1~1952.1 | ||||||||
| 8.5 | 123 | 13.3~51.0 | 469.4~1800.3 | ||||||||
| 10.5 | 152 | 11.7~46.0 | 413.0~1623.8 | DN125 | 3500 (3500) |
2250 (2100) |
2300 (2400) |
6600 (6400) |
|||
| 12.5 | 181 | 10.3~41.2 | 363.6~1454.4 | ||||||||
| SZ-375TPM (W) |
4.5 | 65 | 19.2~76.9 | 677.8~2714.6 | 280 | 375 | DN200 | 4300 (4000) |
2400 (2400) |
2600 (2650) |
8800 (8500) |
| 5.5 | 80 | 17.8~71.0 | 628.3~2506.3 | DN150 | 3800 (3800) |
2300 (2300) |
2400 (2400) |
8100 (7800) |
|||
| 6.5 | 94 | 16.2~65.0 | 571.9~2294.5 | ||||||||
| 7.5 | 109 | 15.1~60.5 | 533.0~2135.7 | ||||||||
| 8.5 | 123 | 14.1~56.5 | 497.7~1994.5 | ||||||||
| 10.5 | 152 | 12.8~51.0 | 451.8~1800.3 | ||||||||
| 12.5 | 181 | 11.6~46.0 | 409.5~1623.8 | ||||||||
| SZ-400TPM (W) |
4.5 | 65 | 20.6~82.5 | 727.2~2912.3 | 300 | 400 | DN200 | 4300 (4000) |
2400 (2400) |
2600 (2650) |
9000 (8700) |
| 5.5 | 80 | 19.2~76.8 | 677.8~2711.0 | ||||||||
| 6.5 | 94 | 17.7~70.9 | 624.8~2502.8 | DN150 | 3800 (3800) |
2300 (2300) |
2400 (2400) |
8300 (8000) |
|||
| 7.5 | 109 | 16.2~65.0 | 571.9~2294.5 | ||||||||
| 8.5 | 123 | 15.0~60.3 | 529.5~2128.6 | ||||||||
| 10.5 | 152 | 14.1~56.5 | 497.7~1994.5 | ||||||||
| 12.5 | 181 | 12.8~51.5 | 451.8~1818.0 | ||||||||
| SZ-440TPM (W) |
4.5 | 65 | 21.3~85.5 | 751.9~3018.2 | 330 | 440 | DN200 | 4300 (4000) |
2400 (2400) |
2600 (2650) |
9300 (8000) |
| 5.5 | 80 | 20.6~82.4 | 727.2~2908.7 | ||||||||
| 6.5 | 94 | 19.2~76.7 | 677.8~2707.5 | ||||||||
| 7.5 | 109 | 17.7~70.7 | 624.8~2495.7 | DN150 | 3800 (3800) |
2300 (2300) |
2400 (2400) |
8600 (8300) |
|||
| 8.5 | 123 | 16.2~65.0 | 571.9~2294.5 | ||||||||
| 10.5 | 152 | 15.0~60.2 | 529.5~2125.1 | ||||||||
| 12.5 | 181 | 14.1~56.5 | 497.7~1994.5 | ||||||||
| SZ-475TPM | 4.5 | 65 | 41.2~101.3 | 1454.4~3575.9 | 355 | 475 | DN200 | 4600 | 2400 | 2650 | 12500 |
| 5.5 | 80 | 37.4~93.7 | 1320.2~3307.6 | ||||||||
| 6.5 | 94 | 32.9~82.3 | 1161.4~2905.2 | DN150 | 4000 | 2400 | 2650 | 11200 | |||
| 7.5 | 109 | 31.2~76.6 | 1101.4~2703.0 | ||||||||
| 8.5 | 123 | 28.2~70.6 | 995.5~2492.2 | ||||||||
| 10.5 | 152 | 26.3~65.8 | 928.4~2322.7 | DN150 | 4000 | 2400 | 2500 | 10000 | |||
| 12.5 | 181 | 24.6~61.6 | 868.4~2174.5 | ||||||||
| SZ-500TPM | - | - | 375 | 500 | - | - | - | - | |||
| 5.5 | 80 | 41.0~101.1 | 1447.3~3568.8 | DN200 | 4600 | 2400 | 2650 | 12900 | |||
| 6.5 | 94 | 37.4~93.5 | 1320.2~3300.5 | ||||||||
| 7.5 | 109 | 32.9~82.2 | 1161.4~2901.7 | DN150 | 4000 | 2400 | 2650 | 11600 | |||
| 8.5 | 123 | 31.2~76.5 | 1101.4~2700.5 | ||||||||
| 10.5 | 152 | 28.1~70.3 | 991.9~2481.6 | 3800 | 2400 | 2500 | 10400 | ||||
| 12.5 | 181 | 26.2~65.5 | 924.9~2312.2 | ||||||||
Product Details
Contact Us
SEIZE COMPRESSOR (Shanghai)Co.,Ltd.
Email: info@seize-air.com
Tel: +86 15001719145
WhatsApp: +86 15001719145
Addres: No. 188, Jinliu Road , Jinshan Industrial Zone, Jinshan District, Shanghai, China
