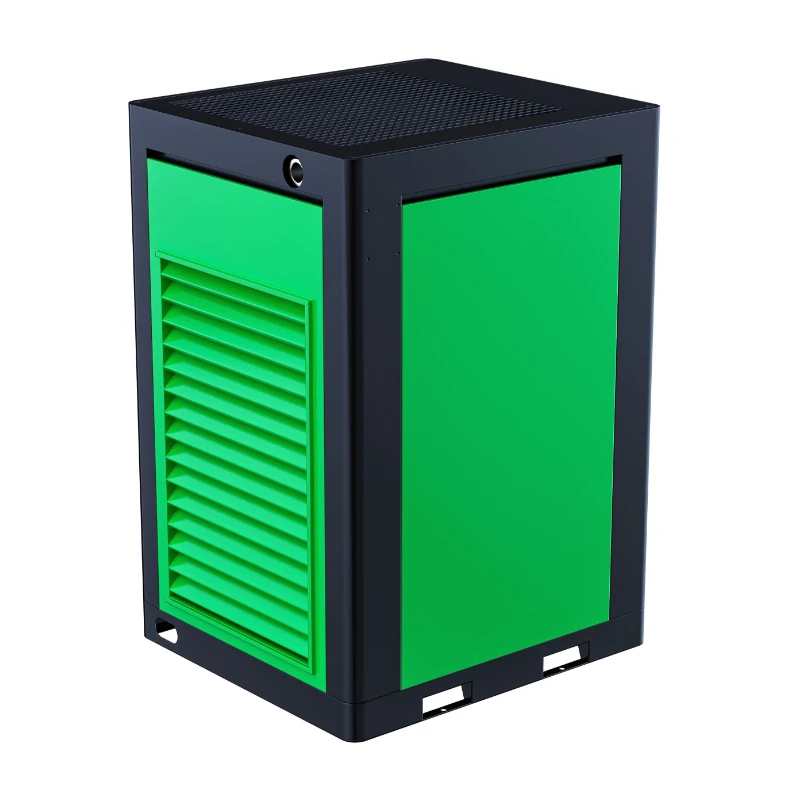

Permanent magnet variable frequency single-stage screw air compressor

IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD

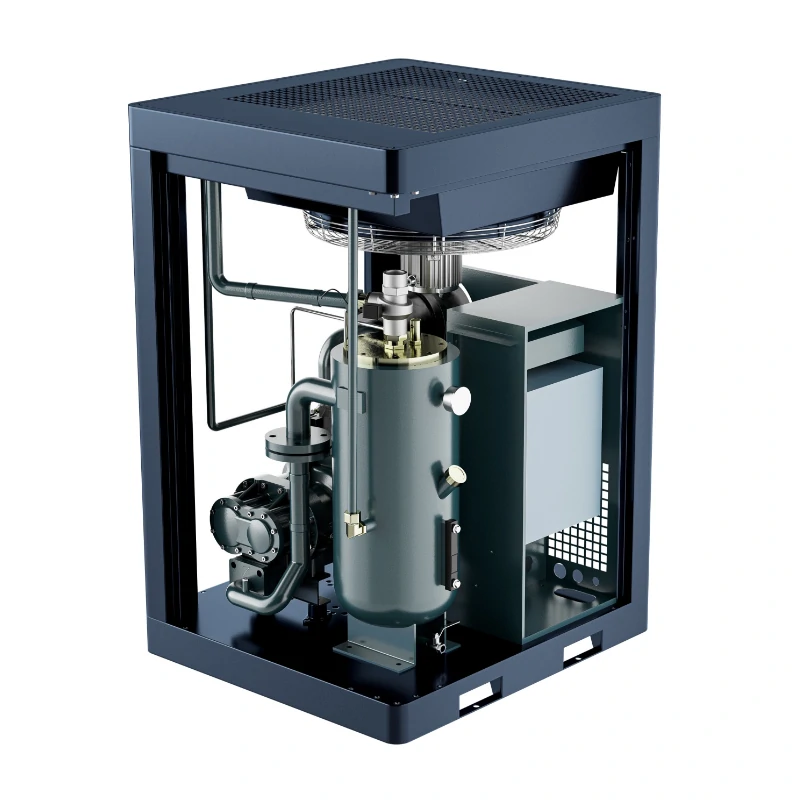

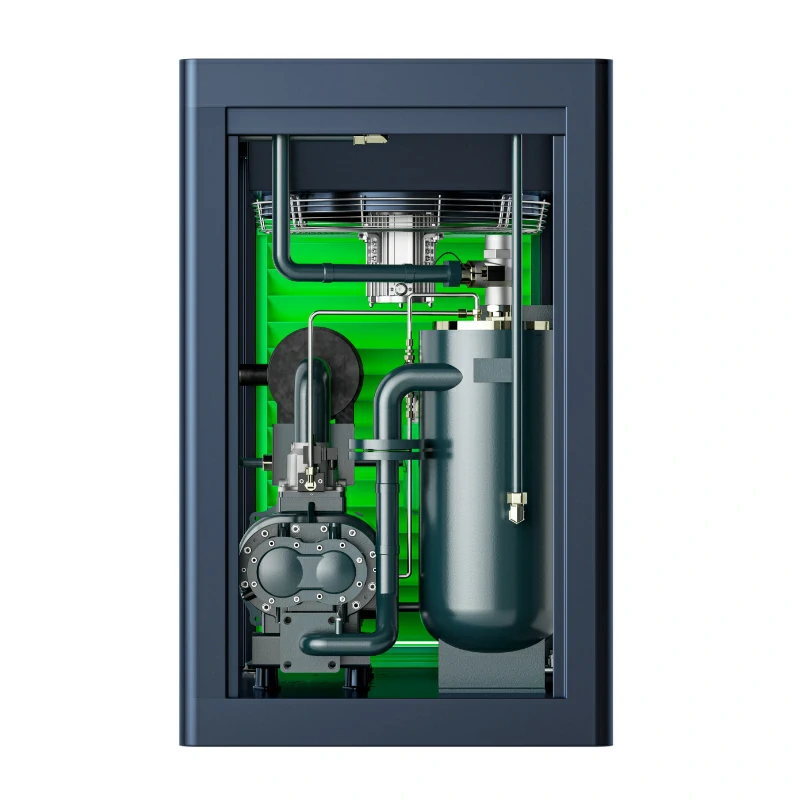

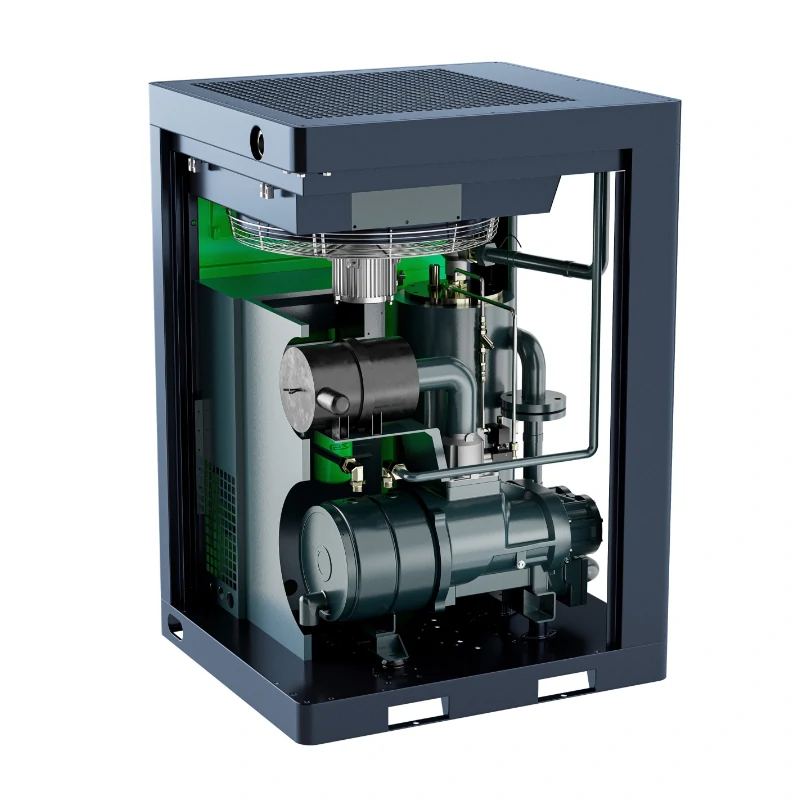

Core Components+ System Advantages

IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD Screw Air Compressor

Wide Speed Range & Precise Control
Adjustable speed (40%~100%) with ±0.1% precision for stable operation
Dual Inverter for Stable Temperature & Pressure
Energy-efficient dual-frequency drive maintains consistent output.
Top-Exhaust Air-Cooled Design
External suction and upward ventilation for easy installation and heat dissipation.
Premium SKF/FAG 6-Bearing System
High-grade bearings (75+ rating) enhance durability and safety.
High-Efficiency, Low-Noise Host Design
Large rotor reduces noise (<65 dB), vibration, and energy consumption (up to 30% savings).
Intelligent Cooling & Low Oil Temperature
Stable thermal control (±2°C) ensures reliability and quiet performance.
Advanced Oil-Gas Separation (<3 ppm Residual Oil)
Custom oversized separator minimizes pressure loss and air contamination.

Product Parameter

分页表格

New Model	Maximum working pressure		Capacity (FAD)		Motor power		Outlet pipe dia	Dimensions (mm)			Weight
	bar	psig	m3/min	cfm	kw	hp	inch	L	w	H	kg
SZ-25PM+	7.5	109	0.93~3.75	33.12~133.92	18.5	25	G1	880	800	1350	450
	8.5	123	0.88~3.55	31.42~126.78
	10.5	152	0.77~3.08	27.50~110.00
SZ-30PM+	7.5	109	1.08~4.35	38.57~155.35	22	30	G1	880	800	1350	510
	8.5	123	1.07~4.30	38.21~153.57
	10.5	152	0.92~3.70	32.85~132.14
SZ-50PM+	7.5	109	1.95~7.80	69.64~278.57	37	50	G1 1/2	1000	900	1420	650
	8.5	123	1.85~7.45	66.07~266.07
	10.5	152	1.67~6.70	59.64~239.28
	12.5	18	1.16~4.62	40.96~163.14
SZ-60PM+	75	109	2.37~9.50	84.64~339.28	45	60	G1 1/2	1080	1000	1480	780
	8.5	123	2.27~9.10	81.07~325.00
	10.5	152	2.00~8.00	71.42~285.71
	12.5	181	1.55~6.00	54.73~211.87
SZ-75PM+	7.5	109	3.02~12.10	107.85~432.14	55	75	G2	1400	1100	1510	950
	8.5	123	2.85~11.40	101.78~407.14
	10.5	152	2.40~9.60	85.71~342.85
	12.5	18	1.97~7.90	70.35~282.14
SZ-100PM+	7.5	109	4.20~16.80	150.00~600.00	75	100	G2	1400	1100	1510	1000
	8.5	123	4.01~16.05	143.21~573.21
	10.5	152	3.50~14.00	125.00~500.00
	12.5	18	2.95~11.80	105.35~421.42
