Medium-pressure air compressor

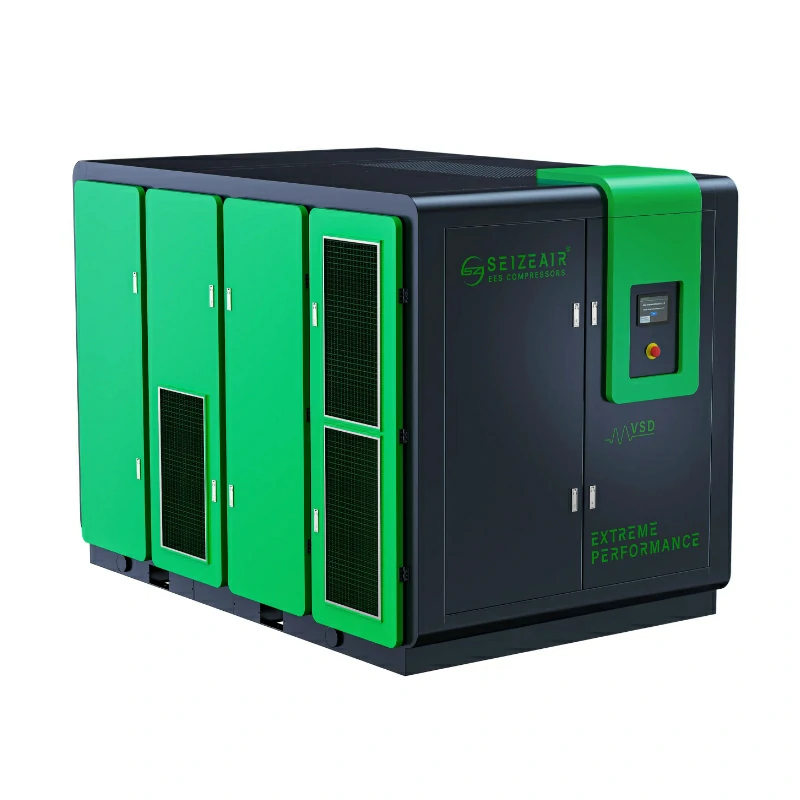

Permanent magnet variable frequency single-stage screw air compressor

Medium pressure air compressor

IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD Screw Air Compressor

	Power	45-450kW
	Air outflow	4-50m³/min
	Max pressure	25-35bar

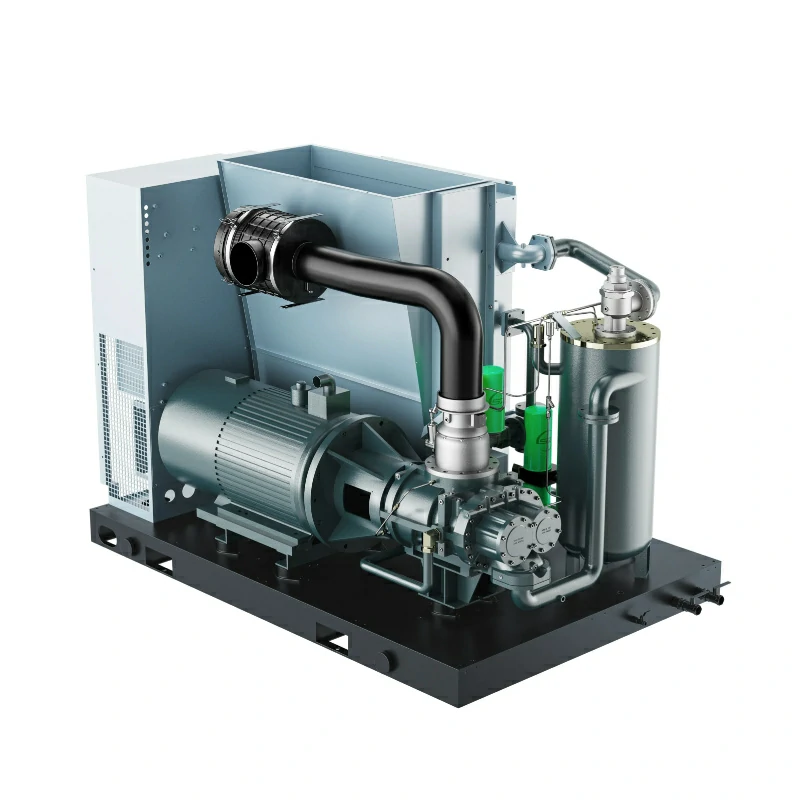

Core Components+ System Advantages

IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD Screw Air Compressor

Wide Speed Range & Precise Control
Adjustable speed (40%~100%) with ±0.1% precision for stable operation
Dual Inverter for Stable Temperature & Pressure
Energy-efficient dual-frequency drive maintains consistent output.

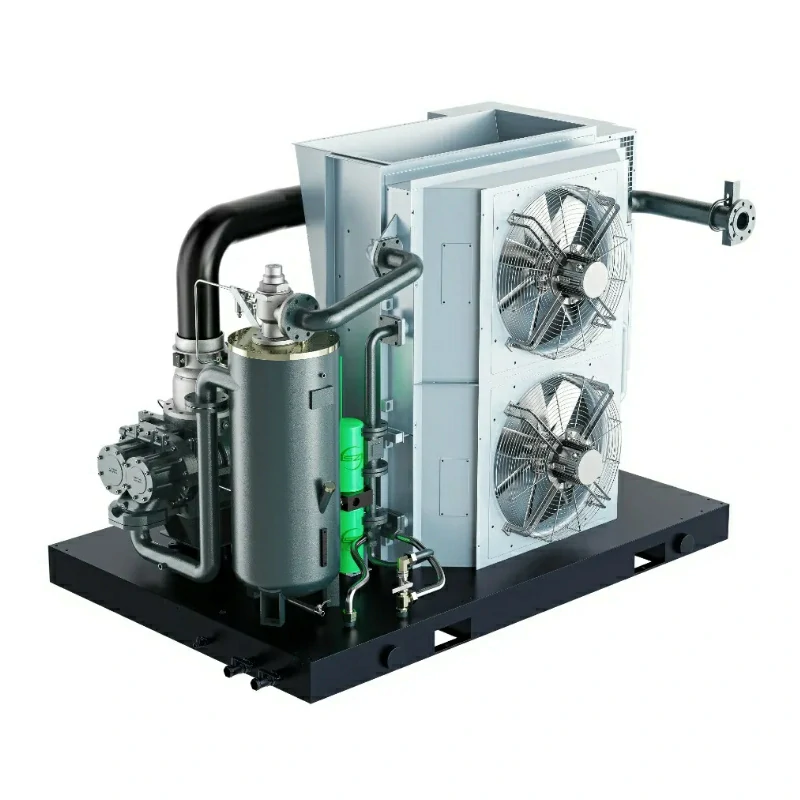

Top-Exhaust Air-Cooled Design
External suction and upward ventilation for easy installation and heat dissipation.
Premium SKF/FAG 6-Bearing System
High-grade bearings (75+ rating) enhance durability and safety.
High-Efficiency, Low-Noise Host Design
Large rotor reduces noise (<65 dB), vibration, and energy consumption (up to 30% savings).
Intelligent Cooling & Low Oil Temperature
Stable thermal control (±2°C) ensures reliability and quiet performance.
Advanced Oil-Gas Separation (<3 ppm Residual Oil)
Custom oversized separator minimizes pressure loss and air contamination.

Product Parameter

SV-45AⅡ~SV-450WⅡ

CE Model	Maximum working pressure		Capacity(FAD)		Motor power		Mode of driving	Outlet pipe dia	Dimensions(mm)			Weight
CE Model	bar	psig	m₃/min	cfm	kw	hp	Mode of driving	inch	L	W	H	kg
SV-45A Ⅱ	20.0	290	3.1~4.5	110.7~158.2	45	60	Direct Driving	DN32	2300	1670	1690	2300
SV-45A Ⅱ	25.0	363	2.8~4.0	98.9~141.3	45	60	Direct Driving	DN32	2300	1670	1690	2300
SV-55A II	20.0	290	3.9~5.6	138.4~197.8	55	75	Direct Driving	DN32	2300	1670	1690	2400
	25.0	363	3.5~5.0	123.6~176.6
	30.0	435	3.3~4.7	116.5~166.0
	35.0	508	2.8~4.0	98.9~141.3
SV-75A Ⅱ	20.0	290	5.5~7.8	193.8~276.9	75	100	Direct Driving	DN32	2300	1670	1690	2500
	25.0	363	4.9~7.0	173.0~247.2
	30.0	435	4.6-6.5	162.4~229.5
	35.0	508	4.2-6.0	148.3~211.9
SV-90A II	20.0	290	8.0~11.4	281.8~402.6	90	120	Direct Driving	DN40	2750	1780	1950	3100
	25.0	363	7.0-10.0	247.2~353.1				DN40	2750	1780	1950	3100
	30.0	435	5.2-7.4	183.6~261.3				DN32	2300	1670	1690	3100
	35.0	508	4.8-6.9	169.5~243.7				DN32	2300	1670	1690	3100
SV-110A Ⅱ	20.0	290	9.2-13.1	326.1~463.0	110	150	Direct Driving	DN40	2750	1780	1950	3300
	25.0	363	8.1-11.5	286.0~406.1
	30.0	435	7.0-10.0	247.2~353.1
	35.0	508	6.7-9.5	236.6~335.5
SV-120A Ⅱ	20.0	290	10.0-14.3	354.3~503.2	120	160	Direct Driving	DN40	2750	1780	1950	3500
SV-120A Ⅱ	25.0	363	8.8-12.5	310.8~441.4	120	160	Direct Driving	DN40	2750	1780	1950	3500
SV-132A Ⅱ	20.0	290	12.0-17.1	422.7~603.9	132	175	Direct Driving	DN40	2750	1780	1950	3700
	25.0	363	10.5-15.0	370.8~529.7
	30.0	435	8.5-12.2	300.2~430.8
	35.0	508	8.3-11.8	293.1~416.7
SV-150A Ⅱ	20.0	290	12.8-18.2	450.9~644.1	150	200	Direct Driving	DN65	2900	1940	1950	4400
SV-150A Ⅱ	25.0	363	11.2-16.0	395.5~565.0	150	200	Direct Driving	DN65	2900	1940	1950	4400
SV-160A II	20.0	290	14.4-20.5	507.3~724.7	160	215	Direct Driving	DN65	2900	1940	1950	4700
	25.0	363	12.6-18.0	445.0~635.7					2900	1940	1950	4700
	30.0	435	10.5-15.0	370.8~529.7					2930	1900	2060	4700
	35.0	508	10.2-14.5	360.2~512.1					2930	1900	2060	4700
SV-185A II	20.0	290	16.0-22.8	563.6~805.2	185	250	Direct Driving	DN65	2900	1940	1950	5000
SV-185A II	25.0	363	14.0-20.0	494.4~706.3	185	250	Direct Driving	DN65	2900	1940	1950	5000
SV-200A Ⅱ	20.0	290	18.5-26.5	653.9~934.1	200	270	Direct Driving	DN65	2900	1940	1950	5300
SV-200A Ⅱ	25.0	363	16.1-23.0	568.6~812.2	200	270	Direct Driving	DN65	2900	1940	1950	5300
SV-220A Ⅱ	20.0	290	20.1-28.8	710.7~1015.3	220	300	Direct Driving	DN65	2900	1940	1950	5600
	25.0	363	17.5-25.0	618.0~882.9					2900	1940	1950	5600
	30.0	435	16.3-23.2	575.6~819.3					2930	1900	2060	5600
	35.0	508	16.1-23.0	568.6~812.2					2930	1900	2060	5600
SV-250A Ⅱ	20.0	290	22.5-32.2	796.0~1137.1	250	340	Direct Driving	DN80	3250	1950	2150	7100
	25.0	363	19.6-28.0	692.2~988.8					3250	1950	2150	7100
	30.0	435	19.3-27.5	681.6~971.2					3500	2250	2300	7100
	35.0	508	18.1-25.8	639.2~911.1					3500	2250	2300	7100
SV-280A Ⅱ	20.0	290	24.2-34.5	852.9~1218.4	280	375	Direct Driving	DN80	3250	1950	2150	7400
SV-280A Ⅱ	25.0	363	21.0-30.0	741.6~1059.4	280	375	Direct Driving	DN80	3250	1950	2150	7400
SV-300A Ⅱ	20.0	290	27.4-39.1	966.6~1380.8	300	400	Direct Driving	DN100	3500	2250	2300	7900
	25.0	363	23.8-34.0	840.5~1200.7				DN100	3500	2250	2300	7900
	30.0	435	21.0-30.0	741.6~1059.4				DN80	3500	2250	2300	7900
	35.0	508	20.7-29.5	731.0~1041.8				DN80	3500	2250	2300	7900
SV-330A ll	20.0	290	30.6-43.7	1080.3~1543.3	330	440	Direct Driving	DN100	3500	2250	2300	8200
	25.0	363	26.6-38.0	939.4~1342.0					3500	2250	2300	8200
	30.0	435	23.6-33.7	833.4~1190.1					3800	2300	2400	8200
	35.0	508	23.1-33.0	815.8~1165.4					3800	2300	2400	8200
SV-375A Ⅱ	20.0	290	36.2-51.8	1279.3~1827.5	375	500	Direct Driving	DN125	3800	2300	2400	8500
	25.0	363	31.5-45.0	1112.4~1589.2				DN125	3800	2300	2400	8500
	35.0	508	25.6-36.5	904.1~1289.0				DN100	3800	2300	2400	8500
SV-450W Ⅱ	20.0	290	40.3-57.5	1421.4~2030.6	450	600	Direct Driving	DN125	3800	2300	2500	8800
SV-450W Ⅱ	25.0	363	35.0-50.0	1236.0~1765.7	450	600	Direct Driving	DN125	3800	2300	2500	8800
