Customized air compressor for laser cutting machines

Intelligent Variable Frequency Air Compressor System with Integrated Cooling & Filtration

Core Components+ System Advantages

Intelligent Variable Frequency Air Compressor System with Integrated Cooling & Filtration

Smart VFD Control System
● Variable frequency drive maintains constant pressure output (±0.1 bar)
● Real-time temperature monitoring with automatic adjustment
● User-friendly interface with one-touch operation
Direct-Drive Permanent Magnet Motor
● IE4/IE5 high-efficiency permanent magnet motor
● 100% transmission efficiency (no gearbox losses)
● Eliminates idle running energy waste
● Coaxial integrated design reduces vibration by 40%

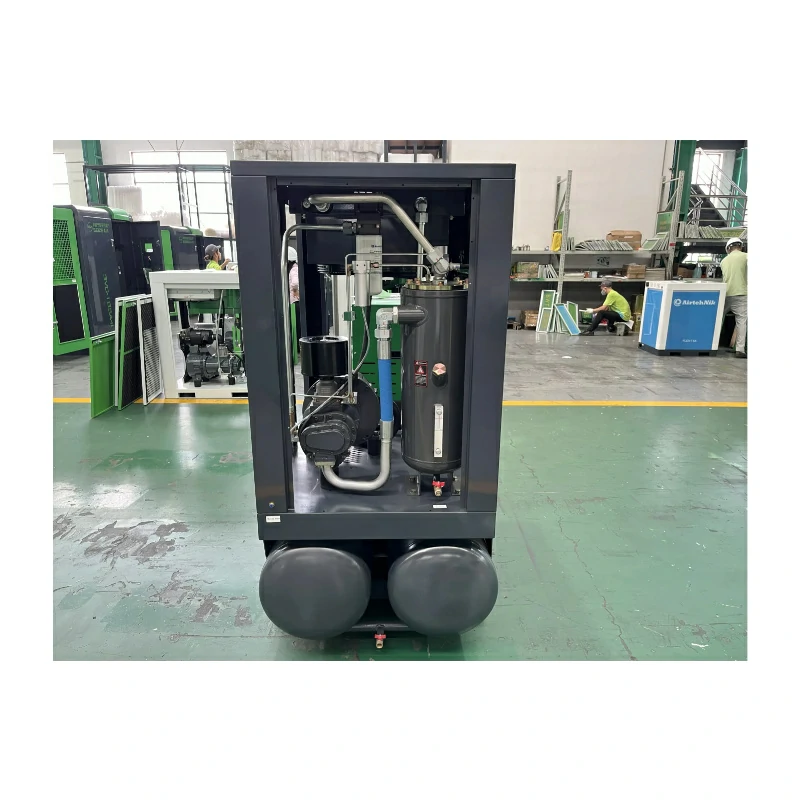

Dual Oil Separation System
● Primary: High-flow internal separator (200% standard capacity)
● Secondary: Precision external separator
● Delivers ultra-clean air (<3ppm oil content)
Integrated Refrigerated Air Dryer & Filtration
● Triple-stage filtration system:
○ 1μm particulate filter
○ Activated carbon filter
○ Coalescing filter
● Dual drainage options (auto/manual)
● Achieves -40°C pressure dew point
Complete Stainless Steel Piping System
● Precision-drawn stainless steel tubing: Zero corrosion risk
○ 30% lower pressure drop
○ Clean, streamlined appearance
● Simplified maintenance-free design

Product Parameter

分页表格

Model	Povwer(Kw)	Povwer(HP)	Air delivery(m³/min)	Pressure(Mpa)	Outlet pipe size	Weight(Kg)	Dimension(mm)
SJVC-15A	15	20	1.3	1.59	G3/4	400	10507001050
SJVC-22A	22	29	2.0	1.59	G1	550	11508001150
SJVC-37A	37	50	3.8	1.59	G1	600	11258951220
SJVC-15AT	15	20	1.3	1.59	G3/4	610	17807001750
SJVC-22AT	22	29	2.0	1.59	G1	740	19308001910
SJVC-37AT	37	50	3.8	1.59	G1	860	19708851870
SJVC-15AF	15	20	1.3	1.59	G3/4	650	17807001750

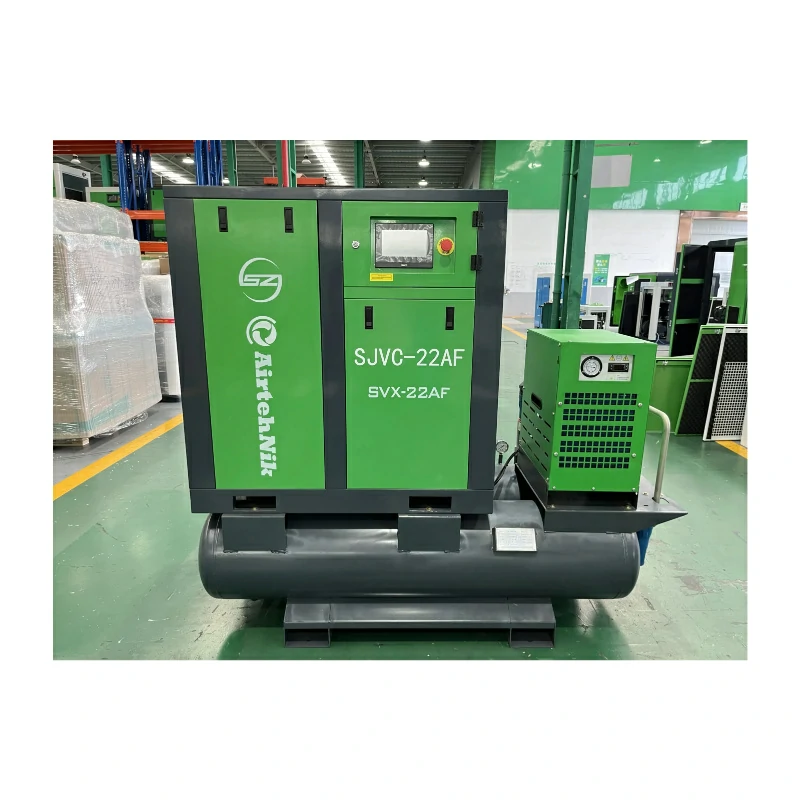

SJVC-22AF	22	29	2.0	1.59	G1	780	19308001910
SJVC-37AF	37	50	3.8	1.59	G1	900	19708851870
