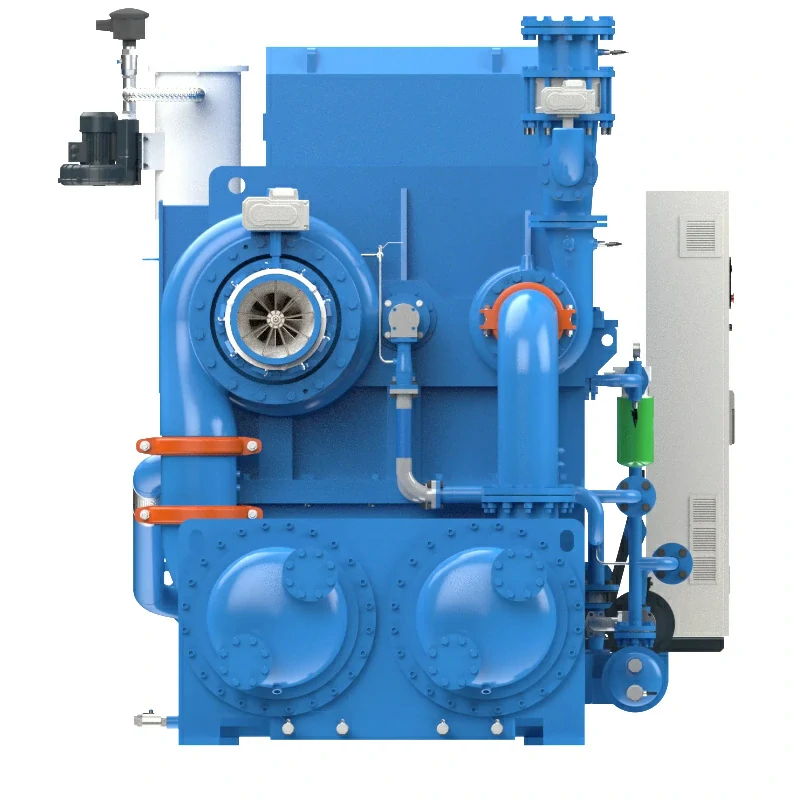

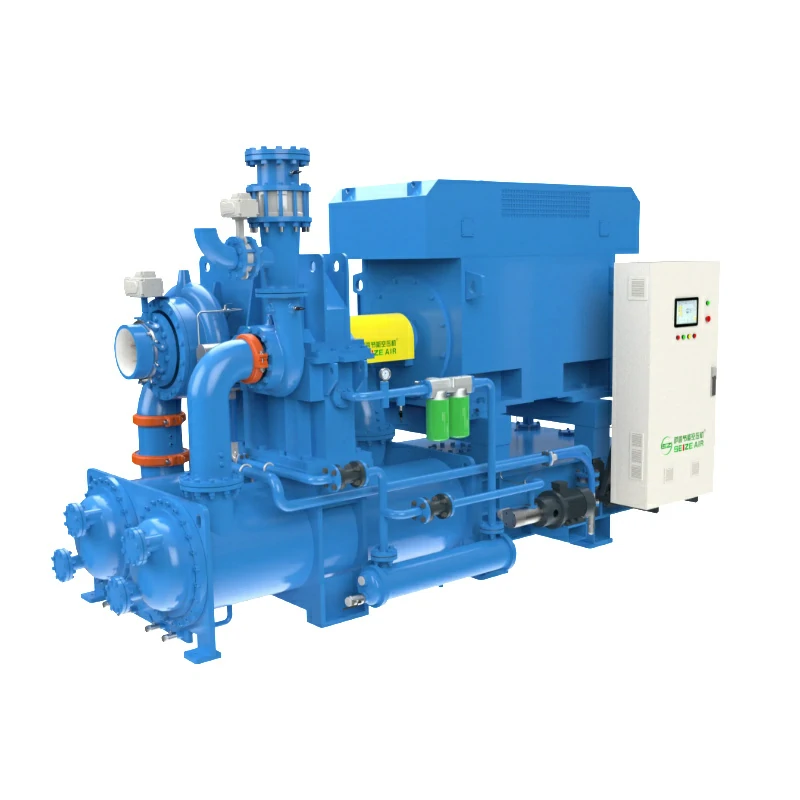

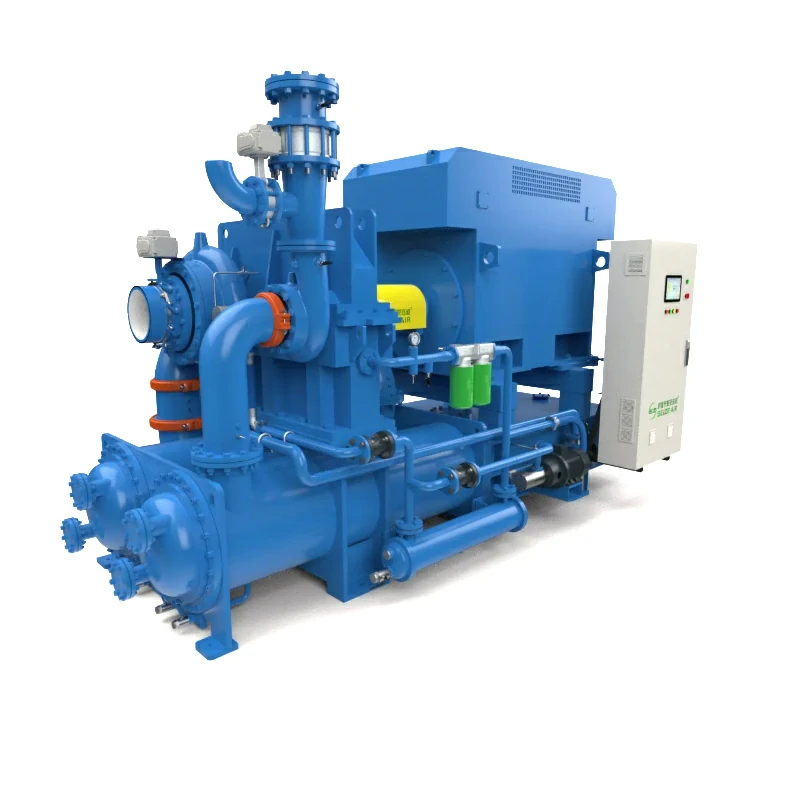

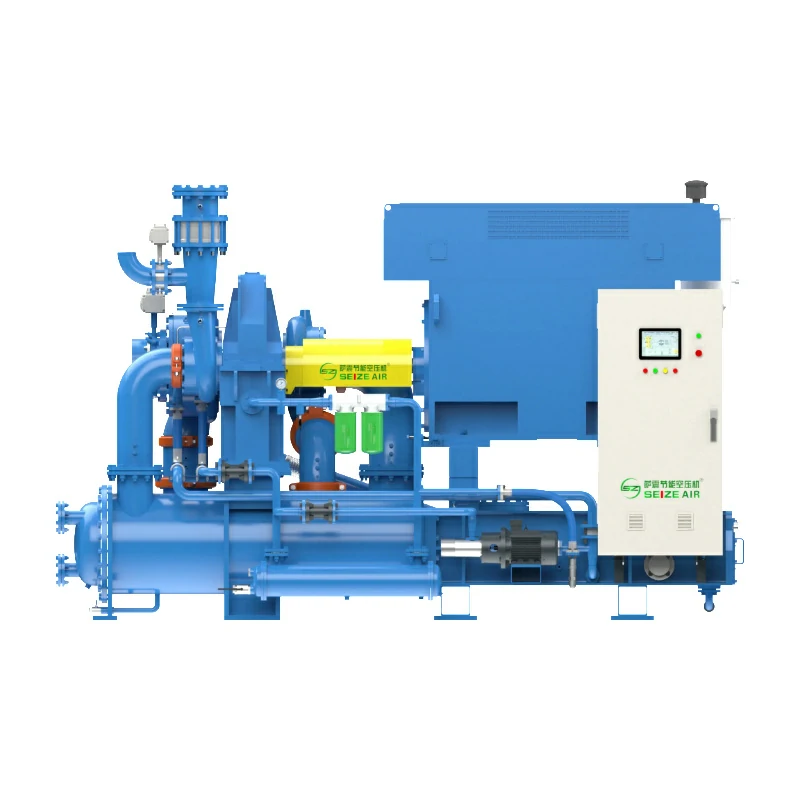

Custom-Designed Oil-Free Centrifugal Compressor with API-Compliant Engineering & Smart Control

1. Customized Impeller & Aerodynamic Design
   ● Client-specific impeller optimization for peak efficiency (±0.5% variance)
   ● Wide operating range (flow ratio <1.5 per model, max 1500m³/min)
   ● 3D backward-curved blades improve efficiency by 1-8% vs. wedge-type designs
   ● Non-standard configurations available (11-35bar pressure range)
2. Vibration Control Beyond API Standards
   ● Rotor AF <2.5 (critical damping state per API 672)
   ● G0.4 dynamic balance (surpasses industry G1 standard)
   ● 17-4PH forged steel with 5-axis CNC machining (μm-level precision)
   ● Thrust ring design reduces axial bearing wear by 40%
3. Thermal Management System
   ● Oversized components:
   ✓ 2X air filters (<0.8kPa pressure drop)
   ✓ 1.5X oil coolers (inlet temp <40°C)
   ✓ API 614-compliant oil reservoir (5-min capacity)
   ● Dual cooling paths prevent heat accumulation
4. 100% Oil-Free Guarantee
   ● Isolated sealing systems:
   ✓ Air seals vented to atmosphere
   ✓ Multi-stage labyrinth oil seals
   ✓ -2kPa gearbox vacuum prevents leaks
   ● Zero lubricant contact with compressed air
5. Smart Anti-Surge Control
   ● Dual protection logic:
   ✓ IGV minimum opening + temp compensation
   ✓ Current monitoring + proportional valves
   ● Three control modes:
   ✓ Constant pressure (0–100% flow adjustment)
   ✓ Auto dual-mode (load/unload cycling)
   ✓ Surge anticipation (handles >30kPa fluctuations)
6. Industry-Proven Applications
   ● Steelmaking: Stable blast furnace air supply
   ● Wastewater: 24/7 operation in municipal plants
   ● Bio-fermentation: Heat recovery compatibility
   ● Chemical processing: MODBUS/DCS integration
7. Why It Stands Out
   ✔ 25-year gear life (AGMA 13精度 + 17CrNiMo6 steel)
   ✔ 60% lower vibration than API thresholds
   ✔ 30% wider operating range vs. competitors
   ✔ Remote O&M via 10.2″ HMI + mobile APP
