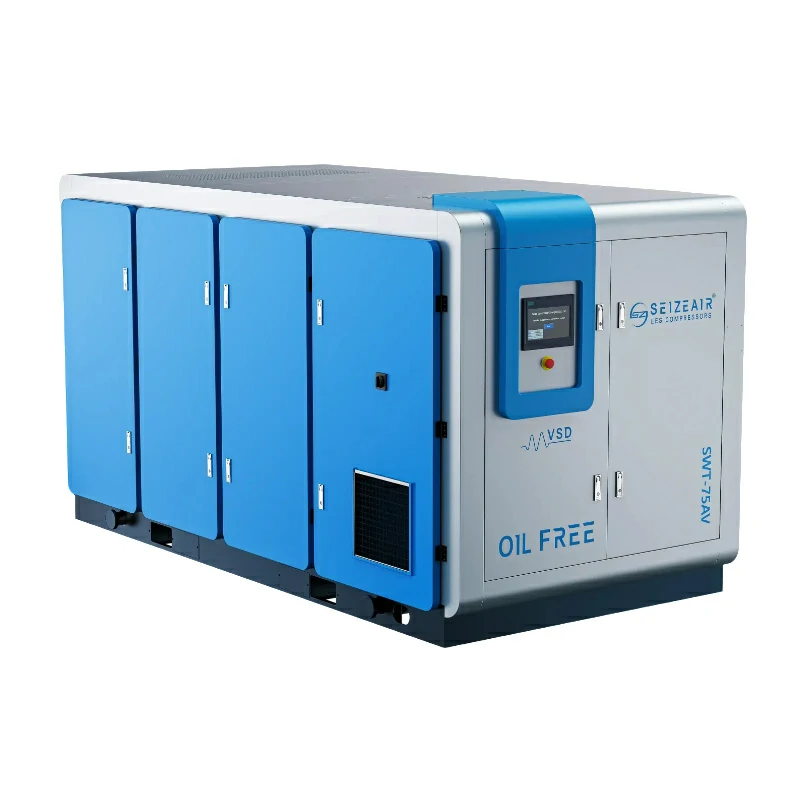

100% Oil-Free Air Compressor with Triple Sealing System & Smart IoT Control

	Power	6-250KW
	Air outflow	0.3-45m³/min
	Max pressure	8-10bar

Core Components+ System Advantages

100% Oil-Free Air Compressor with Triple Sealing System & Smart IoT Control

Certified 100% Oil-Free Air
● Triple sealing system guarantees pure oil-free air (Class 0, ISO 8573-1)
● Zero risk of oil contamination
Ultra-Precision AGMA 13 Gearing
● High-precision gearbox (AGMA Class 13) ensures smooth power transmission
● Withstands extreme operating conditions (dust, humidity, temperature fluctuations)
Next-Gen Rotor Design for Maximum Efficiency
● Optimized rotor profile improves airflow efficiency by 12–15%
● Stainless steel rotor core + special alloy coating provides:
✓ Heat resistance (up to 300°C)
✓ Anti-wear & corrosion protection
✓ 50% longer lifespan vs standard rotors
Leak-Proof Gearbox Protection
● Oil mist separator on gearbox vent captures 99% of lubricant vapors
● U-shaped pressure differential valve prevents oil leaks
● Maintains clean operation environment
Dual-Stage Air Intake System
● Two-stage filtration (pre-filter + main filter) ensures:
✓ Optimal air intake quality
✓ 5–8% higher compressor efficiency
✓ Extended component life
Smart IoT Monitoring & Control
● Real-time performance tracking (pressure, temp, energy use)
● Predictive maintenance alerts via cloud connectivity
● Remote troubleshooting reduces downtime

Product Parameter

分页表格

SWVC-06A~SWVC-45A

Model	Maxi work pressure (bar)	Maxi pressure (psig)	FAD		Motor power (kW)	Noise (dB)	Cooling water inlet/outlet	Cooling water inlet temp (32%)	Dimensions (L×W×H mm)	Weight (kg)	Air outlet (inch)
Model	Maxi work pressure (bar)	Maxi pressure (psig)	m³/min	cfm	Motor power (kW)	Noise (dB)	Cooling water inlet/outlet	Cooling water inlet temp (32%)	Dimensions (L×W×H mm)	Weight (kg)	Air outlet (inch)
SWVC- 06A/W	8	116	0.30-0.78	10.6-27.5	5.5	58	3/4”	1.5	800X800X1200	320	3/4”
SWVC- 06A/W	10	145	0.20-0.65	7.1-22.9	5.5	58	3/4”	1.5	800X800X1200	320	3/4”
SWVC- 08A/W	8	116	0.35-1.15	12.4-40.6	7.5	58	3/4”	2	800X800X1200	320	3/4”
SWVC- 08A/W	10	145	0.45-1.42	15.9-50.1	7.5	58	3/4”	2	800X800X1200	320	3/4”
SWVC- 11A/W	8	116	0.54-1.72	19.1-60.7	11	60	1"	2.5	1200X750X1330	400	3/4”
SWVC- 11A/W	10	145	0.45-1.42	15.9-50.1	11	60	1"	2.5	1200X750X1330	400	3/4”
sWVC- 15A/W	8	116	0.75-2.43	26.5-85.8	15	63	1"	3.5	1200X750X1330	440	3/4”
sWVC- 15A/W	10	145	0.65-2.12	22.9-74.8	15	63	1"	3.5	1200X750X1330	440	3/4”
SWVC- 18A/W	8	116	0.90-3.10	31.8-109.4	18	63	1”	4	1400X900X1270	640	1"
SWVC- 18A/W	10	145	0.90-2.82	31.8-99.5	18	63	1”	4	1400X900X1270	640	1"
SWVC- 22A/W	8	116	1.10-3.70	38.8-130.6	22	63	1"	5	1400×900X1270	640	1"
SWVC- 22A/W	10	145	0.97-3.21	34.2-113.3	22	63	1"	5	1400×900X1270	640	1"
sWVC- 30A/W	8	116	1.55-5.20	54.7-183.6	30	66	11/4”	7	1400X950X-1380(A)	760	11/4”
sWVC- 30A/W	10	145	1.26-4.43	44.5-156.4	30	66	11/4”	7	1400X950X-1380(A)	760	11/4”
SWVC- 37A/W	8	116	1.91-6.10	67.4-215.3	37	67	11/2"	9	1550X1150X-1550(A)	1200	11/4"
	10	145	1.60-5.25	56.5-185.3					1550X1150X-1550(A)
	12.5	181	1.42-4.85	50.1-171.2					1500X1150X-1300(W)
SWVC- 45A/W	8	116	2.50-8.30	88.3-292.3	45	68	2"	10	2050X1360X-1680(A)	1050	2"
SWVC- 45A/W	10	145	1.91-6.30	67.4-222.4	45	68	2"	10	2050X1360X-1680(A)	1050	2"

SW-06A~SW-55A

Model	Maximum work pressure		FAD		Motor power KW	Noise dB	Cooling water inlet and outlet diameter	Cooling water Inlet water temperature 32%	Dimensions L×W×H mm	Weight kg	Air outlet inch
Model	bar	psig	m³/min	cfm	Motor power KW	Noise dB	Cooling water inlet and outlet diameter	Cooling water Inlet water temperature 32%	Dimensions L×W×H mm	Weight kg	Air outlet inch
SW-06 A/W	8	116	0.72	25.4	5.5	58	3/4"	1.5	800X800X1200	300	3/4"
SW-06 A/W	10	145	0.65	21.2	5.5	58	3/4"	1.5	800X800X1200	300	3/4"
SW-08 A/W	8	116	1.05	31.7	7.5	58	3/4"	2	800X800X1200	300	3/4"
SW-08 A/W	10	145	0.80	28.2	7.5	58	3/4"	2	800X800X1200	300	3/4"
SW-11 A/W	8	116	1.72	60.7	11	60	7	2.5	1200X750X1130	420	3/4”
SW-11 A/W	10	145	1.42	50.1	11	60	7	2.5	1200X750X1130	420	3/4”
SW-15 A/W	8	116	2.25	79.4	15	63	1"	3.5	1200X750X1130	420	3/4”
SW-15 A/W	10	145	1.92	67.8	15	63	1"	3.5	1200X750X1130	420	3/4”
SW-18 A/W	8	116	3.00	105.9	18	65	1"	4	1400×900X1270	600	1"
SW-18 A/W	10	145	2.20	77.7	18	65	1"	4	1400×900X1270	600	1"
SW-22 A/W	8	116	3.65	128.8	22	65	1"	5	1400X900X1270	620	1”
SW-22 A/W	10	145	3.00	105.9	22	65	1"	5	1400X900X1270	620	1”
SW-30 A/W	8	116	5.00	176.5	30	67	11/2"	7	1400X950X1380(A)	740	11/4"
SW-30 A/W	10	145	3.90	137.7	30	67	11/2"	7	1400X950X1380(A)	740	11/4"
SW-37 A/W	8	116	6.30	222.4	37	67	11/2"	9	1580X1000X1470(A)	860	11/4"
SW-37 A/W	10	145	5.33	188.1	37	67	11/2"	9	1580X1000X1470(A)	860	11/4"
SW-45 A/W	8	116	7.80	275.3	45	68	11/2"	10	2050X1360X1680(A)	1020	2"
SW-45 A/W	10	145	6.30	222.4	45	68	11/2"	10	2050X1360X1680(A)	1020	2"
SW-55 A/W	8	116	10.10	356.5	55	70	11/2"	12	2050X1360X1680(A)	1080	2"
SW-55 A/W	10	145	7.90	278.9	55	70	11/2"	12	2050X1360X1680(A)	1080	2"

SWVC-55A~SWVC-250A

Model	Maxi work p bar	mum ressure psig	FAD		Motor power KW	Noise dB	Cooling water inlet and outlet diameter	Cooling water Inlet water tem-Derature 32%	Dimensions L'W'H mm	Weight kg	Air outlet inch
Model	Maxi work p bar	mum ressure psig	m³/min	cfm	Motor power KW	Noise dB	Cooling water inlet and outlet diameter	Cooling water Inlet water tem-Derature 32%	Dimensions L'W'H mm	Weight kg	Air outlet inch
SWVC- 55A/W	8	116	3.00-10.30	105.9-363.6	55	68	2”	12	2050X1360X-1680(A)	1100	2"
SWVC- 55A/W	10	145	2.60-8.55	91.8-301.8	55	68	2”	12	2050X1360X-1680(A)	1100	2"
SWVC- 75A/W	8	116	3.95-13.00	139.4-458.9	75	72	2"	18	1800X1360X-1670	1230	2"
SWVC- 75A/W	10	145	3.40-11.50	120.0-405.6	75	72	2"	18	1800X1360X-1670	1230	2"
SWVC- 90A/W	8	116	5.0-16.60	176.5-585.9	90	73	2"	20	2200X1550X-1800(W)	2080	21/2"
SWVC- 90A/W	10	145	4.30-14.60	151.8-515.4	90	73	2"	20	2200X1550X-1800(W)	2080	21/2"
sWVC- 110A/W	8	116	6.00-20.20	211.8-713.1	110	75	2”	24	2200X1550X-1800	2230	21/2"
sWVC- 110A/W	10	145	5.00-16.60	176.5-585.9	110	75	2”	24	2200X1550X-1800	2230	21/2"
sWVC- 132A/W	8	116	6.75-23.00	238.3-829.6	132	75	2”	30	2200X1550X-1800(W)	2360	21/2"
sWVC- 132A/W	10	145	6.00-19.90	211.8-702.5	132	75	2”	30	2200X1550X-1800(W)	2360	21/2"
SWVC- 160A/W	8	116	8.50-28.10	300.1-991.9	160	77	3	35	2700X1830X1850	3900	DN80
SWVC- 160A/W	10	145	7.60-25.40	268.3-896.6	160	77	3	35	2700X1830X1850	3900	DN80
sWVC- 185W	8	116	10.00-31.30	353.0-1104.9	185	77	3”	38	2700X1830X1850	4050	DN80
sWVC- 185W	10	145	8.72-29.00	307.8-1023.7	185	77	3”	38	2700X1830X1850	4050	DN80
SWVC- 200W	8	116	11.20-36.70	395.4-1295.5	200	78	4”	42	2700X1830X1850	4200	DN100
SWVC- 200W	10	145	9.68-31.80	341.7-1122.5	200	78	4”	42	2700X1830X1850	4200	DN100
sWVC- 220W	8	116	12.2-39.50	430.7-1394.4	220	80	4”	47	2700X1800X2050	4400	DN100
	10	145	11.2-35.80	395.4-1263.7
	12.5	181	9.0-29.50	317.7-1041.4
SwVC- 250W	8	116	13.50-45.00	476.6-1588.5	250	79	4”	53	2700X1830X1850	4800	DN100
SwVC- 250W	10	145	12.30-40.00	434.2-1412	250	79	4”	53	2700X1830X1850	4800	DN100
